Iron Wire Coil With Roofing Rolls Steel
| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 25 Metric Ton |
| Delivery Time: | 30 Days |

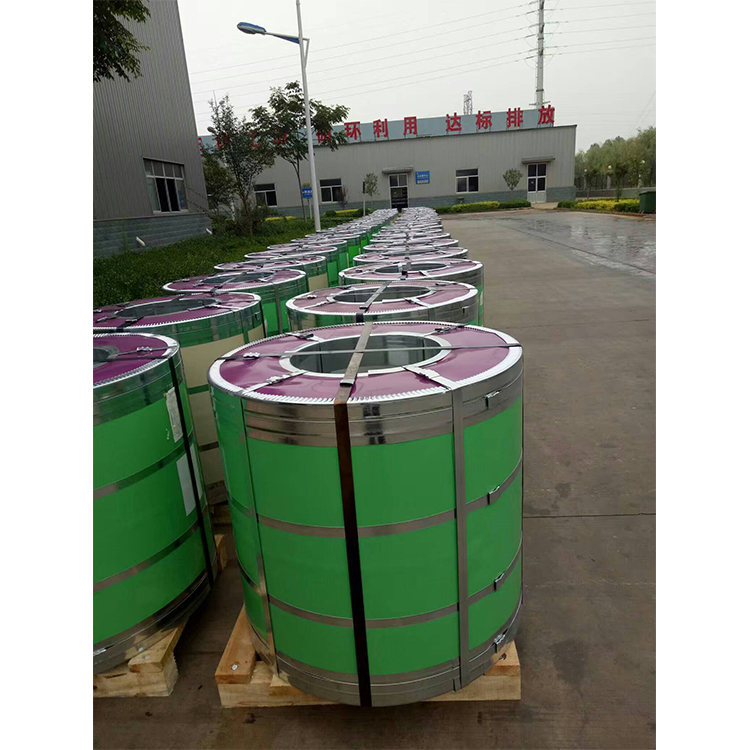

| Packaging: | Seaworthy standard export packing . CARDBOARD SLEEVES, STEEL SHEET WRAPPED OUTSID, FIXED BY STEEL BELT. |
|---|---|
| Productivity: | 300000 |
| Brand: | XINGHAN |
| Transportation: | Ocean,Land |
| Place of Origin: | CHINA |
| Supply Ability: | 500000 |
| Certificate: | ISO 9001:2008/SGS/BV |
| Port: | TIANJIN,CHINA,QINGDAO |
Product Description
As a leading enterprise in the galvanized & pre-painted industry in china. Shandong Xinghan Materail Corporation with an annual output of 1 million tons of picking coils. 1 million tons of cold roll. 800,000 tons of hot-dipped galvanized and galvalume steel sheets. 450,000 tons of thicker galvanized steeel sheets.300,000 tons of pre-painted steel sheets. occupies a stable leading position in the industry.
1. Cold rolled substrate color coated steel sheet
The color sheet produced by the cold-rolled substrate has a smooth and beautiful appearance and has the processing property of the cold-rolled sheet;
2. Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)
The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;
3. Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)
Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
4. Electroplated zinc color coated sheet
The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.

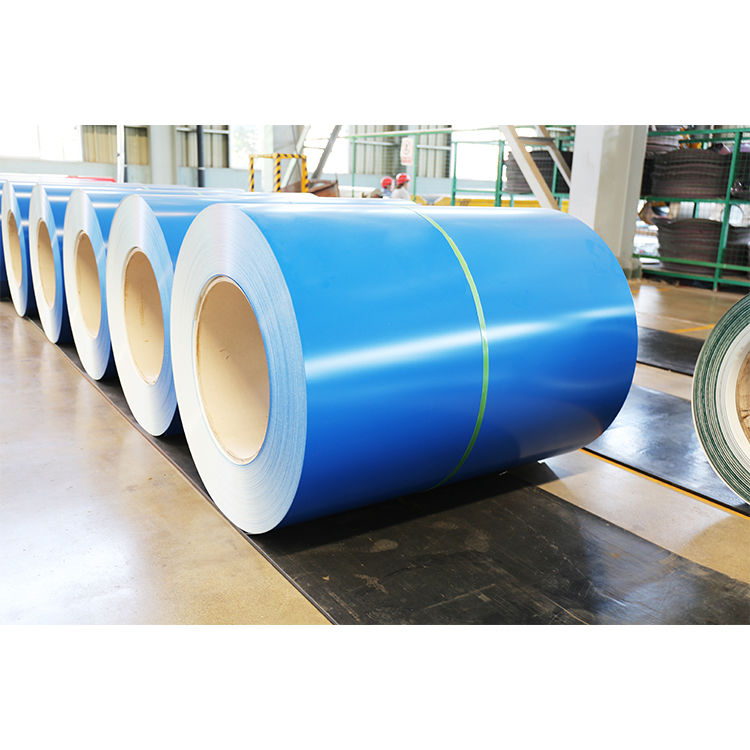

Pre painted galvanized steel coils (PPGI)
| CONTENTS | PREPAINTED GALVANIZED – PPGI | PREPAINTED GALVALUME – PPGL |
| BASE METAL | GALVANIZED | GALVALUME / ALUZINC |
| STANDARDS | JIS G 3312-CGCC, CGC340-570,( 57534810,G550), | JIS G 3312-CGLCC, CGLC340-570,( 57534811,G550), |
| ASTM A -755M CS-B, SS255-SS550 | ASTM A -755M CS-B, SS255-SS550 | |
| THICKNESS | 0.14~2.0 mm | 0.14~2.0 mm |
| Width | 750~1500 mm | 750~1500 mm |
| Coil ID | 508/610 mm | 508/610 mm |
| Substrate | Soft, Medium, Hard | Soft, Medium, Hard |
| Coating Mass | Z 40-275 (g/m2) | AZ 40-150 (g/m2) |
| Paint Systems | Primers: Epoxy, PU | Primers: Epoxy, PU |
| Top Coating: | Top Coating: | |
| Polyester (RMP/PE) | Polyester (RMP/PE) | |
| Silicon Modified Polyester (SMP) | Silicon Modified Polyester (SMP) | |
| Poly Vinyl Di Flouride (PVDF) | Poly Vinyl Di Flouride (PVDF) | |
| Back Coating: Epoxy, Polyester, PU | Back Coating: Epoxy, Polyester, PU | |
| Coating | 20 – 50 Microns | 20 – 50 Microns |
| Colours | As Per RAL Chart/Customer requirements. | As Per RAL Chart/Customer requirements. |
| Surface Finishes | Glossy and Matte | Glossy and Matte |
| Cut to length | 200mm-5000mm | 200mm-5000mm |
| Capacity | 1,500,000.00 Ton / year | 1,500,000.00 Ton / year |
| Packing | Sea Worthy Export Packaging | Sea Worthy Export Packaging |
| Loading Port | Tianjin Port/Jingtang Port/Shanghai Port | Tianjin Port/Jingtang Port/Shanghai Port |
Product Categories : Prepainted Galvanized Steel Coil
